Piscine Laghetto Ground Skimmer Opera Pool
OPERA GROUND SKIMMER POOL
OPERA
Project By Luigi Spedini
Piscine Laghetto introduces a new line of in-ground skimmer pools with a single-panel steel structure, equipped with unique features that arise from its forty-year experience in the construction of modular pools.
The result of the construction site is a swimming pool that literally stands as an intermediate point between a classic skimmer solution and an overflow one, with undeniable economic and aesthetic advantages.
INFORMATION
STRUCTURE
In galvanized steel with exclusive protective cover system Laghetto ZSV-TEC. Standard panel height: 120 cm. Water height: 115 cm (only with Laghetto overflow skimmer).
SKIMMER
360 ° spillway, patented by Piscine Laghetto. Alternatively, a traditional wall skimmer can be mounted on request.
EDGE
In smooth white or rough white margella type stone.
COATINGS
1.5 mm PVC membrane installed directly on site. Available colors: beige, white, light blue, dark blue .
MOUNTED ACCESSORIES AND SYSTEMS
- Pre-assembled technical room with electrical panel.
- Sand filter and mud vacuum system for cleaning the bottom.
- Access ladder AISI 316.
- Ghost Pond Led lights
- Summer and / or winter pool cover
DIMENSIONS
| MOD. | Water Mirror(m.) | Total Overall(m.) | Water Height (m.) | Volume(mc) |
|---|---|---|---|---|
| 36 | 3.00 X 6.00 | 4.80 X 7.80 | 1.15 | 20.7 |
| 37 | 3.00 X 7.00 | 4.80 X 8.80 | 1.15 | 24.2 |
| 38 | 3.00 X 8.00 | 4.80 X 9.80 | 1.15 | 27.6 |
| 48 | 4.00 X 8.00 | 5.80 X 9.80 | 1.15 | 36.8 |
| 49 | 4.00 X 9.00 | 5.80 X 10.80 | 1.15 | 41.4 |
| 410 | 4.00 X 10.00 | 5.80 X 11.80 | 1.15 | 46.0 |
| 510 | 4.00 X 10.00 | 5.80 X 11.80 | 1.15 | 46.0 |
| 511 | 5.00 X 11.00 | 6.80 X 12.80 | 1.15 | 63.3 |
| 512 | 5.00 X 12.00 | 6.80 X 13.80 | 1.15 | 69.0 |
| 612 | 6.00 X 12.00 | 7.80 X 13.80 | 1.15 | 82.8 |
TECHNOLOGY
THE ZSV-TEC TECHNOLOGY

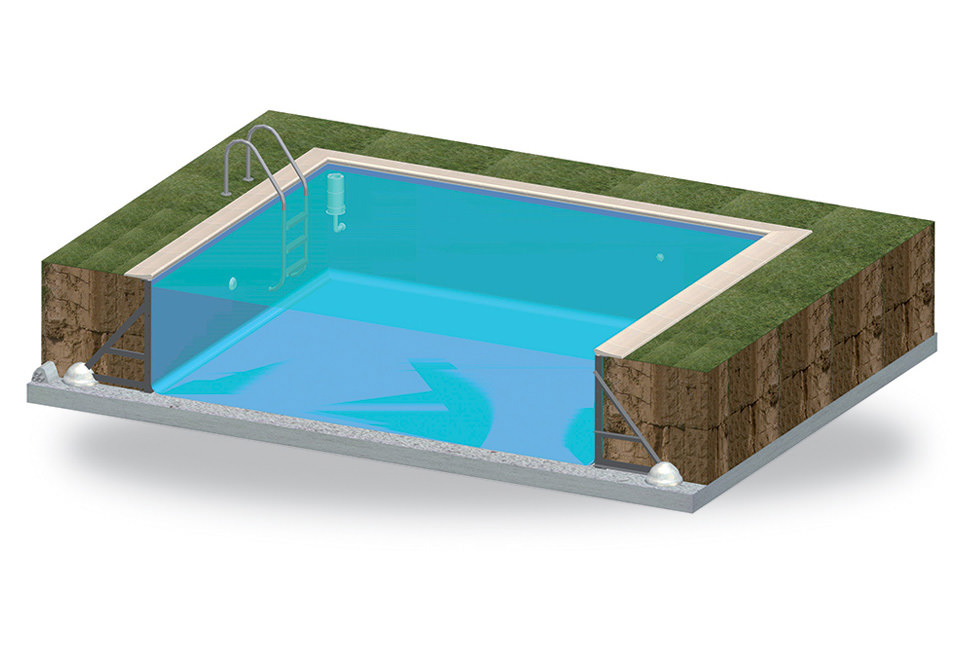

The pool panel, with high resistance in galvanized steel (2 mm thick), is originally pre-drilled. After this processing it is pickled and oven painted with an epoxy paint coating. The over-painting creates a perfectly homogeneous protective film on the panel, considerably increasing its duration over time.
MODULAR PANELS
The 100 and 200 cm width modules allow the construction of all the rectangular standard sizes provided for in the Opera catalog, starting from 3 × 6 meters, up to 6 × 12. Special narrower panels then make it possible to adapt the size of the tank to the customer's needs, practically offering a dimensional solution for every type of need.
The height of the panel is fixed at 120 centimeters, while the maximum filling of the water mirror reaches 115 centimeters, just below the edge of the pool. The minimum height of 115 centimeters can always be increased by acting on the design of the concrete bottom slab of the pool itself.
THE SKIMMER THAT MAKES THE DIFFERENCE
The other element that characterizes Opera is the use of the 360 ° overflow skimmer, patented by Piscine Laghetto. This sampling point, placed directly in the pool and positioned in one or more corners of the pool according to the dimensional needs and the amount of water to be filtered, ensures perfect cleaning of the entire surface of the water mirror and allows maximum filling of the pool , thanks to the considerable vertical excursion ensured by the floating head of the skimmer itself.
A unique plus for an unparalleled aesthetic and functional result. Alternatively, on request, it is possible to mount a traditional skimmer on the wall, with a consequent reduction in the height of the pool's water mirror.
STRUCTURAL STAIRS - ROMAN

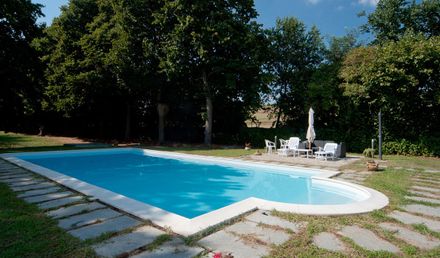

Opera can be fitted with a “classic” Roman staircase, inserted in the head of the pool and also made with the exclusive Laghetto ZSV-TEC structure. The diameter with a radius of 150 cm and a diameter of 300 cm allows the assembly of curved steel panels for the construction of the Roman steps on all pool widths equal to or greater than 3 meters.
The steps and treads that make up the Roman steps for the Laghetto Opera pool are made of concrete directly on site after the construction of the structure and before laying the covering material.
STRUCTURAL STAIRS - "L" CORNER
Even a modern, comfortable and highly sought after L-shaped corner staircase can be combined with a Laghetto Opera pool. An appendix to the normal rectangular shape of the pool, to be used as a privileged point of entry / exit from the pool, as a whirlpool, a place for conversation or a sunbathing area.
A space of 2 × 2 or 2 × 3 meters, outside the stretch of water occupied by bathers or swimmers, where you can make the most of your pool, at any time.
DETAIL
EDGE TYPE MARGELLA
A classic and elegant element that immediately distinguishes the stylistic essence of the Opera pool. A reconstructed stone border made with selected precious marbles to give your pool a refined, design imprint, both in the smooth white finish and in the rough effect one, obtained with mother-of-pearl or quartz inserts.
WINTER POOL COVER
The winter storage cover is made of green / black rip Stopper polythene coated floating fabric with super anti-UV treatment. The sheets of this type, patented by Piscine Laghetto, are equipped with anti-rolling water weights and practical hooks for anchoring to the ground.
ROBOT CLEANER
Leave the cleaning of the bottom and walls of your Opera pool to an automatic electric cleaner. Simply immerse the appliance in water and it will take care of the tub, without any effort on your part.
GHOST SMD LED HEADLIGHTS
Ghost is the name of the new very practical lighthouse by Laghetto that uses the latest generation SMD LED technology. A product that combines unparalleled light output, very low power consumption and unparalleled durability. The headlight is equipped with 2 interchangeable aesthetic covers (transparent and white). Number of Led lights: 238; voltage 12V AC; current 1.8 A; consumption: 21.5W
TECHNICAL ROOM
The practicality and convenience of installation and maintenance of a well in which all the devices necessary for the correct functioning of the pool are pre-assembled in the factory for a quicker and easier assembly and satisfactory use. Sand filters, pumps, electrical panels, pipes and fittings are the best the market can offer for this type of skimmer pool.
STAINLESS STEEL LADDER
The ladders in stainless steel AISI 316 constitute the classic and comfortable access system to the tub. Equipped with non-slip steps, they can also be combined with Roman or corner stairs, especially in large pools.
