Wedi Fundo Nautilo Bathroom
FUNDO NAUTILO BATHROOM
FUNDO NAUTILO
"Floor-level wellness showers in unusual shapes.“
The snail-like shape of the Fundo Nautilo design is a real eye-catcher in any bathroom. Whilst it is very functional, it is high quality design makes it particularly attractive.
The tileable floor units are not only highly practical and reliable, they have also opened up a whole new world of design possibilities for wet rooms and bathrooms.
- Certainty thanks to a uniform predefined slope
- Entire system is 100% waterproof
- Simple and safe to work with - tested by those in the trade
INFORMATION
MINIMUM FOUNDATION HEIGHT DEPENDING ON THE DRAIN:
- Horizontal drain, DN 50 : 130 mm
WHEELCHAIR LOAD-BEARING FROM MINIMUM TILE SIZE
50 x 50 mm
GLASS MOSAIC FROM 3 MM, MINIMUM SIZE
20 x 20 mm
TECHNICAL PROPERTIES FUNDO NAUTILO
For impact sound insulated floor structures, installation of impact sound insulation under wedi Fundo and perimeter isolation strips should be planned: Construction using wedi Nonstep Plan impact sound deadening boards (6 mm rubber granulate insulation element, Δ L W,R = 14 dB in accordance with DIN 52210). Alternatively, approved polythene membranes may be used. Permitted noise level in accordance with DIN 4109 LIn ≤ 30 dB(A) and in accordance with VDI 4100 SSt III ≤ 25 dB (A), caused by water: complied with using wedi Fundo and Nonstep Plan.
VERTICAL DRAIN
40 mm
SURFACE SLOPE
18 mm
TECHNICAL PROPERTIES – DRAIN
Special drain with odour trap and stainless steel cover.
- 120 × 120 mm
- Ø 120 mm
Drain performance depending on the drain selected:
- Fundo drain Mini Max, horizontal, DN 40 : 0,54 l/s ; 32,4 l/min
- Fundo drain, horizontal, DN 50 : 0,80 l/s ; 48,0 l/min
- Fundo drain, vertical, DN 50 : 1,00 l/s ; 60,0 l/min
- Fundo drain, vertical, DN 70 : 0,88 l/s ; 52,8 l/min
PRODUCT SIZES
| Order no. | Designation | Dimensions |
|---|---|---|
| 073736066 | Fundo Nautilo shower element, right entry | L 1890 x B 1515 mm |
| 073736065 | Fundo Nautilo shower element, left entry | L 1890 x B 1515 mm |
| 041708000 | Fundo Nautilo wall element | Height 2015 mm |
| 041708052 | Fundo Nautilo extension collar | Height 500 mm |
| 041708002 | Fundo Nautilo libero wall element | Height 2050 mm |
| 041708053 | Fundo Nautilo libero extension collar | Height 500 mm |
AREA OF APPLICATION
The installation is the same as for the building element Fundo Primo.
AREAS OF USE FUNDO NAUTILO
-In domestic residential construction. -In publicly accessible buildings and workplaces complying with DIN 18040 part 1. -In accessible dwellings complying with DIN 18040 part 2 (note specifications for minimum tile size if wheelchair access is planned, see technical properties) -As a construction seal combined with tile and natural stone (floors subject to moderate surface flowing water in interior areas; directly loaded floors in rooms in which tap or cleaning water is used very frequently or for long periods, and floors of indoor and outdoor pools that are filled with water with the properties of drinking water).
ACCESSORIES
MANDATORY ARTICLES

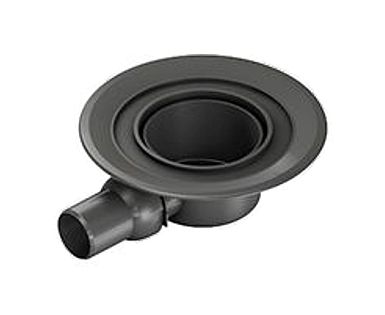

- Horizontal drain
- Vertical drain
OPTIONAL ARTICLES
-Point drainage, square drain covers -Wedi Tools joint reinforcement tape -Wedi tools sealing tape -Wedi 610 – adhesive sealant -Wedi 520 – Sealant -Wedi 320 tile adhesive -Moltoromo installation set -Wedi Fundo sealing set
