C3 Systems Roller Blinds
ROLLER BLINDS
ROLLER BLINDS
Habitat-sun roller blind is a modern solar protecting element designed for fulfilling different types of requirement.
It is a perfect solution for any type of glass curtains, as it can be installed on the side of glass curtain telescopic profile, without affecting the systems´ functionality.
This system contributes in energy optimization efficiency as it controls at our will the entrance of light, allowing better and more efficient usage of enclosed spaces. Habitat-sun roller blinds are available as motorized or manual operating option.
Due to variety of material options, including different type of textile and finishes, it is easily combined with house decoration.
MODELS
SIMPLE SYSTEM
Individual roller blind with manual drive placed on one side. Manual drive with a string.

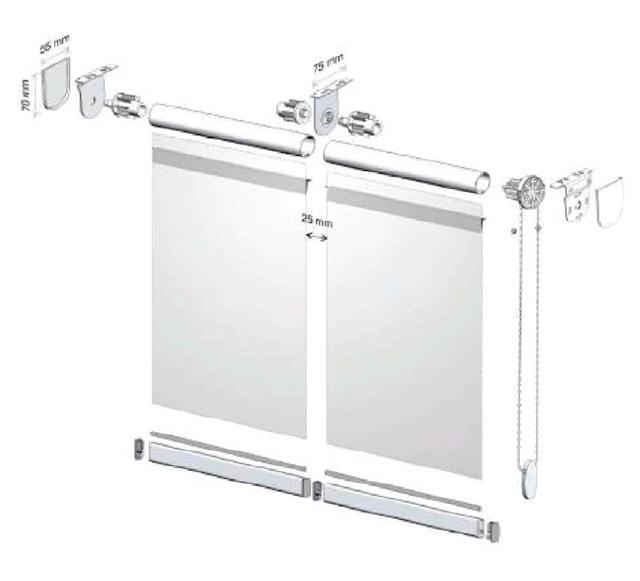

DOUBLE INDEPENDENT SYSTEM
Two individual rollers connected with a central joint, using independent manual drives and functioning independently. Manual drive with a string.
DOUBLE SYSTEM
Two individual rollers connected with a central joint, using manual drive placed on one side. Manual drive with a string.
MOTORIZED SYSTEM
Individual roller blind with motorized drive using control remote.
INFORMATION
ELEMENT
Modern Solar Protecting
USAGE
- Better
- More Efficient
AREA
- Simple And Double : 6 m²
- Double Ind. : 12 m²
- With Motor : 8 m²
MAXIMUM HEIGHT
- Simple : 3500 mm
- Double : 3500 mm
- Double Ind. : 3500 mm
- With motor : 4000 mm
MAXIMUM WIDTH
- Simple : 2500 mm
- Double : 2500 mm
- Double Ind. : 5000 mm
- With motor : 4000 mm
MINIMUM WIDTH
- Simple Maxi. : 500 mm
- Double : 500 mm
- Double Ind. : 500 mm
- With motor : 700 mm
CERTIFICATION
European Class 2
TRANSMISSION OF SOLAR ENERGY
0,12 According to index GTot EN 13363-1/2
TRANSMITTANCE
0.56 W / m² K
APPLICATION

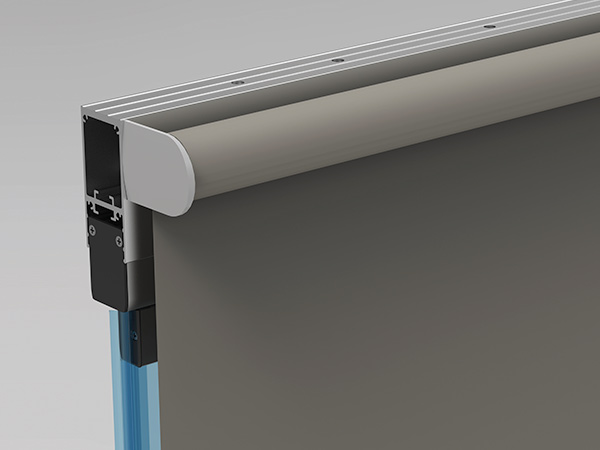

Thanks to our specially designed telescopic profile for roller blinds, the system is installed on the front part of the profile and placed over the glass curtain. There is a possibility of attaching the system to the ceiling instead of to the front profile without losing the functionality of the system.
Designed for direct installation over glass curtain telescopic profile Seeglass.
TECHNICAL CHARACTERISTICS
| FABRICS AVAILABLE | BASIC | SCREEN | BLACK-OUT |
|---|---|---|---|
| Height Max | 3000 mm | 3000 mm | 3000 mm |
| Weight M² | 260 gr/m² | 425 gr/m² | 537 gr/m² |
| Width Max | 2000 mm | 2500 mm | 3000 mm |
| Woven Composition | 100% Polyester | 70% PVC + 30% Polyester | 75% PVC + 25% Fiberglass |
| Drive | Manual with motorized chain | Manual with motorized chain | Manual with motorized chain |
| Fire Classification | Not flame retardant | Flame retardant (see classification) | Flame retardant (see classification) |
| Finishing Accessories | Gray, black and white | Gray, black and white | Gray, black and white |
CONFIGURATIONS
Depending on glass curtain configuration or the type of surface where the roller blind installation will take place, there are several different settings possibilities for best possible adaptation.
FINISHES
Upper And Lower Profile Colorsare Available In The Following Finishes: Grey, White And Black
CERTIFICATES AND QUALITY
- Wind Load Resistance
- Normalized Thermal Transmittance-0.56 W/M2 K
- Sound Isolation sound Reduction 1db
DOWNLOAD
↓ Catalogue
TECHNICAL DATA
COMPATIBILITY
Adaptable to any glass curtain system even, if it is already installed.
MANUAL REGULATION
Allows upper and lower regulation of each panel.
ROD FOR MANUAL DRIVE
Specially designed for high enclosures.
STACKABLE SYSTEM
The system can be stacked in any models and positions.
DIVERTER
Option to install a pleated blind in the opening panel.
MULTIPLE CONFIGURATIONS
It can be placed even in angled glass curtains.
