Cordivari Frame Pro Radiator
FRAME PRO RADIATOR
FRAME PRO RADIATOR
The ventilation decorative radiator
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Radiator
COLLECTION
Frame
PRODUCTION
Made in Italy
FEATURES
- Heating
- High performance
- European warranty
- Stand-alone control electronics
- Ventilation system with Brushless DC inverter motor
- Recommended for heat pump or low temperature systems
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
USE
Heating
MATERIAL
Painted carbon steel.
PACKAGING
The radiator is protected by recyclable carton box.
CLASS PROTECTION
Class II.
MINIMUM INGRESS PROTECTION
IP 24.
CONTROL ELECTRONICS
Stand-alone control electronics for the management and control of the radiator. DC brushless ventilator in low voltage 24vdc.Adaptor AC/DC 220v- 24 vdc 30 w ip20 plug typ c with connection wire length between adaptor AC/DC and radiator 1400 mm.
DETAIL
Frame pro is the new high-performance radiator of cordivari design, designed for the heating systems with heat pump or low temperature. The radiator uses a ventilation system with brushless DC inverter motor that guarantees comfort and high performances.
FIXING KIT
The fixing kits with screws and dowels suitable for compact wall or hollow bricks. For a correct installation please always refer to the assembly instructions.
SMART CONTROL OPERATING MODE
- Manual : The user can select up to 4 fan speeds via the function buttons, independent of the flow temperature values. From the display you can always see the current operating status of the radiator.
- Auto : the fan speed is adjusted automatically according to the flow temperature value read by the probe positioned on the radiator. The algorithm will choose whether to switch off, modulate or push the fan to maximum speed. The display always shows the current operating status of the decorative radiator.

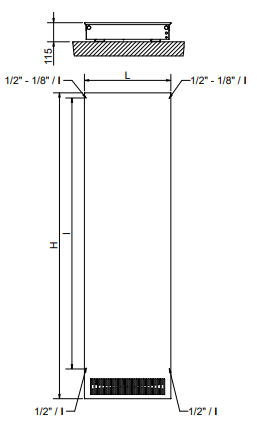

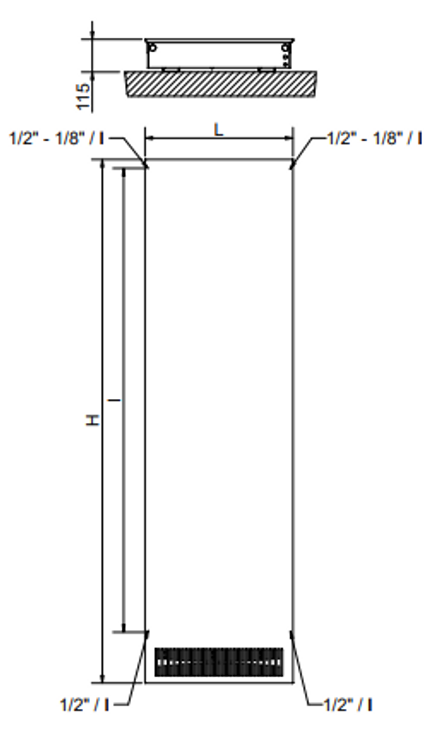

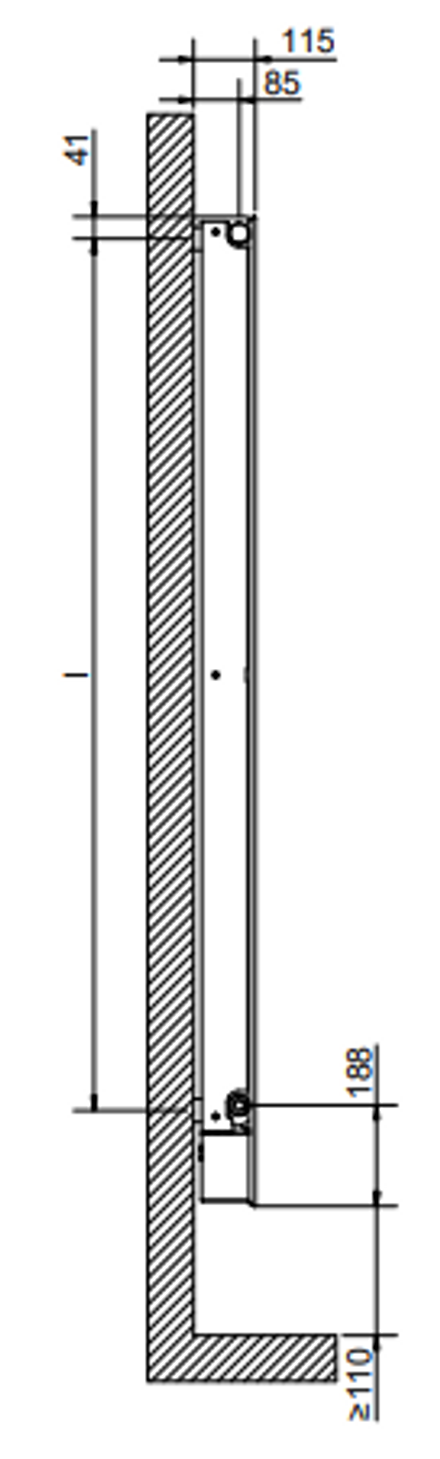

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
