Crosswater Tropic Dual Control Kitchen Mixer Chrome
TROPIC DUAL CONTROL KITCHEN MIXER CHROME
TROPIC DUAL CONTROL KITCHEN MIXER CHROME
Product code : TP711DC
INFORMATION
BRAND
Crosswater
PRODUCT TYPE
Kitchen Tap
BAR CODE
5055833657308
APPROVAL NUMBER
WRAS 1901419
PRODUCTION
Made in United Kingdom
COLLECTION
Tropic
AVAILABLE FINISH
1
INSTALL TYPE
Deck Mounted
WARRANTY
15 Years
SPOUT PROJECTION
180
NUMBER OF OUTLETS
1

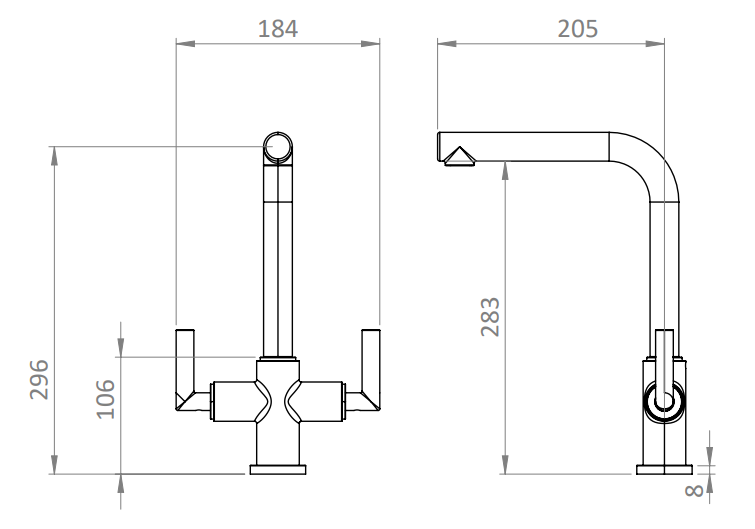

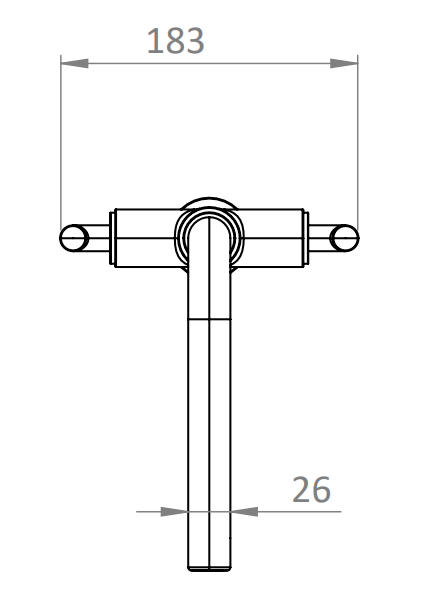

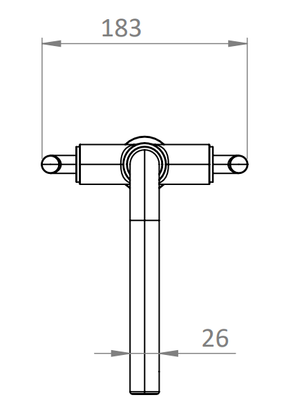

TECHNICAL DRAWINGS
WIDTH
180mm
LENGTH
310mm
HEIGHT
309mm
DEPTH
230mm
MINIMUM PRESSURE
0.2 Bar
INSTALLATION INSTRUCTIONS
INSTALLATION
First shut off your water heating system, then with your mains stop cock closed, open the lowest cold and hot taps in the house and allow to run until the cold storage tank and pipes are empty (the hot storage cylinder always remains full). Fitting isolating valve to inlet feeds is recommended for ease of maintenance.

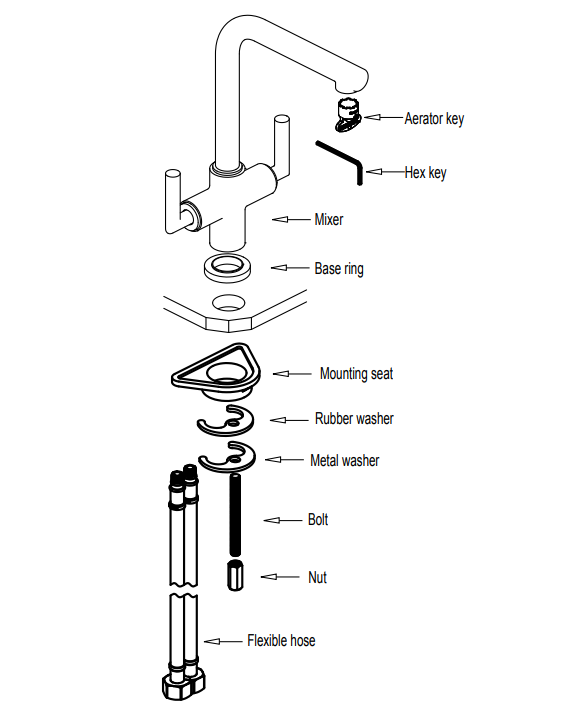

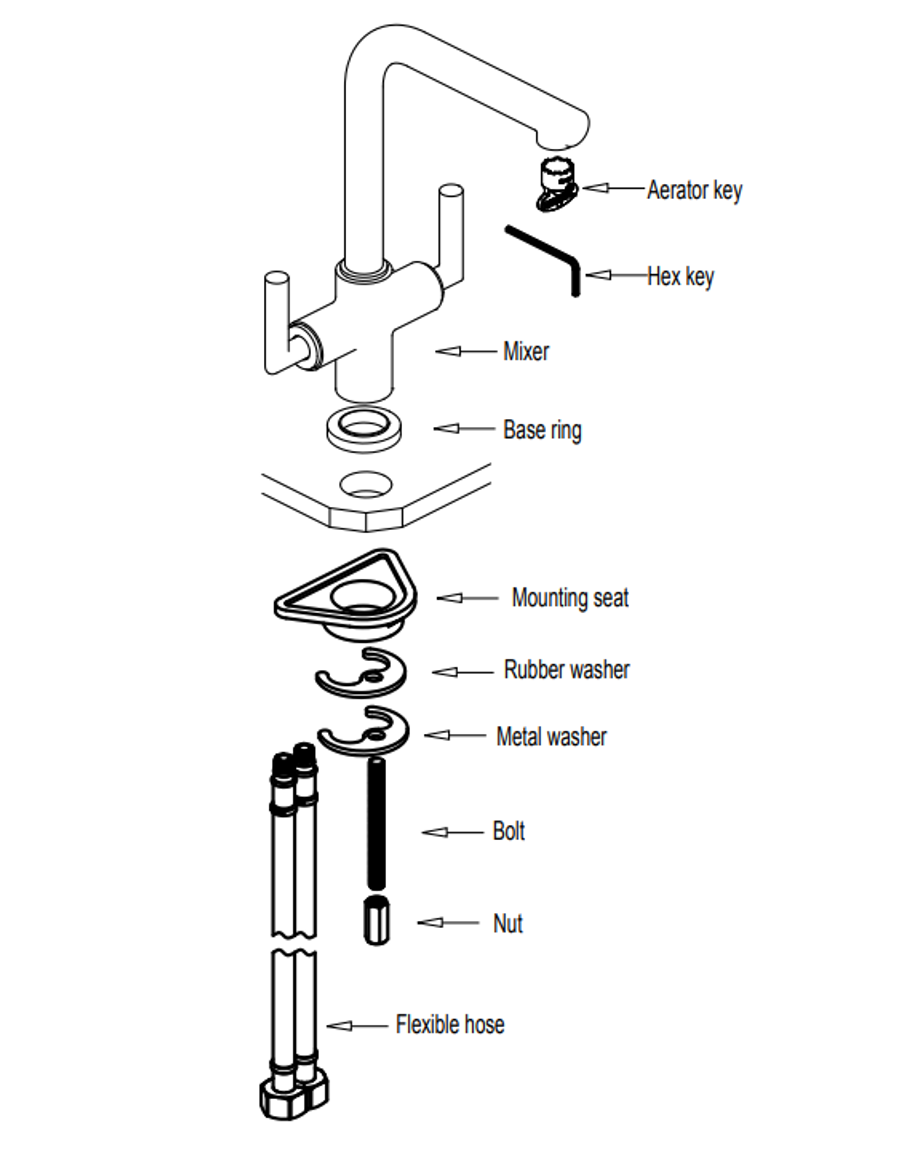

-Screw the bolt into the mixer body and fully hand tighten. -Screw the flexible hoses into the mixer body and fully hand tighten. -Slide the base ring up the bolt to the bottom of mixer body. -Locate the mixer assembly down through the tap hole upon the sink. Connect water supplies with flexible hoses.onnect water supplies with flexible hoses.
-Slide the mounting seat, rubber washer, metal washer up to the bolt, and secure by screwing the fixing nut finger tight. -Make sure the product is correctly positioned and fully tighten the fixing nut -Turn the water sup -Finally switch on the water heating arrangements.
MAINTENANCE
- Cleaning the cartridge : The concealed cartridges should give trouble free service, but in the event of any problem, service is straight forward.

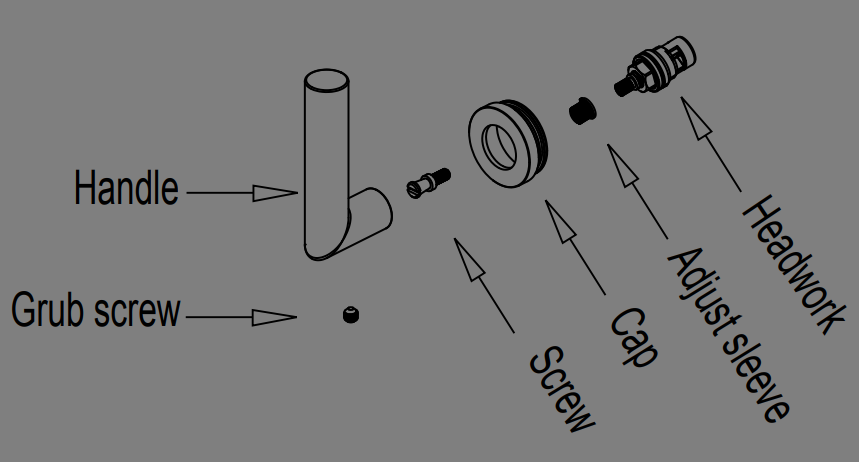

- To Remove the Cartridge : Use a suitable hex key to loosen the grub screw, but do not remove it. Pull off the handle. Unscrew the screw. Pull off the cap and the adjust sleeve, Loosen the headwork out and wash it with clean running water, Make sure any trapped debris has been removed. Dry and lightly grease the seal (only use silicone grease).Refit the headwork followed by the adjust sleeve, screw, cap, handle and grub screw.
CLEANING
The chrome plate we use on our taps is very durable, nevertheless care should be taken when cleaning. It should be cleaned only with warm soapy water followed by rinsing with clean water and drying with a soft cloth. All finishes are vulnerable to acid attack and some strong substances such as household cleaners, disinfectants, denture cleaners, hair dyes, wine making and photographic chemicals can cause surface to go black or peel.
