CLASSIC ROOF TILES
CLASSIC ROOF TILES

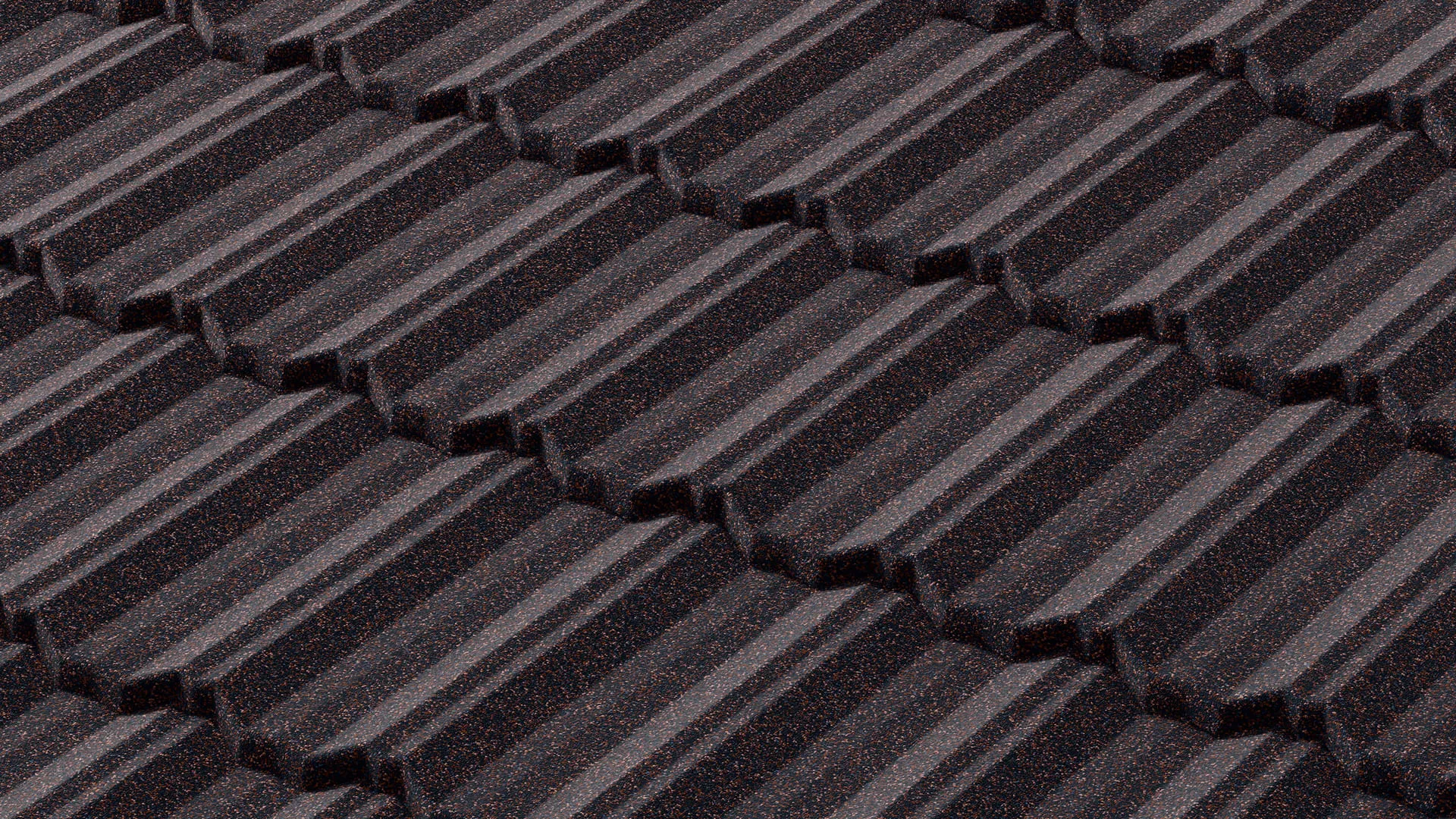

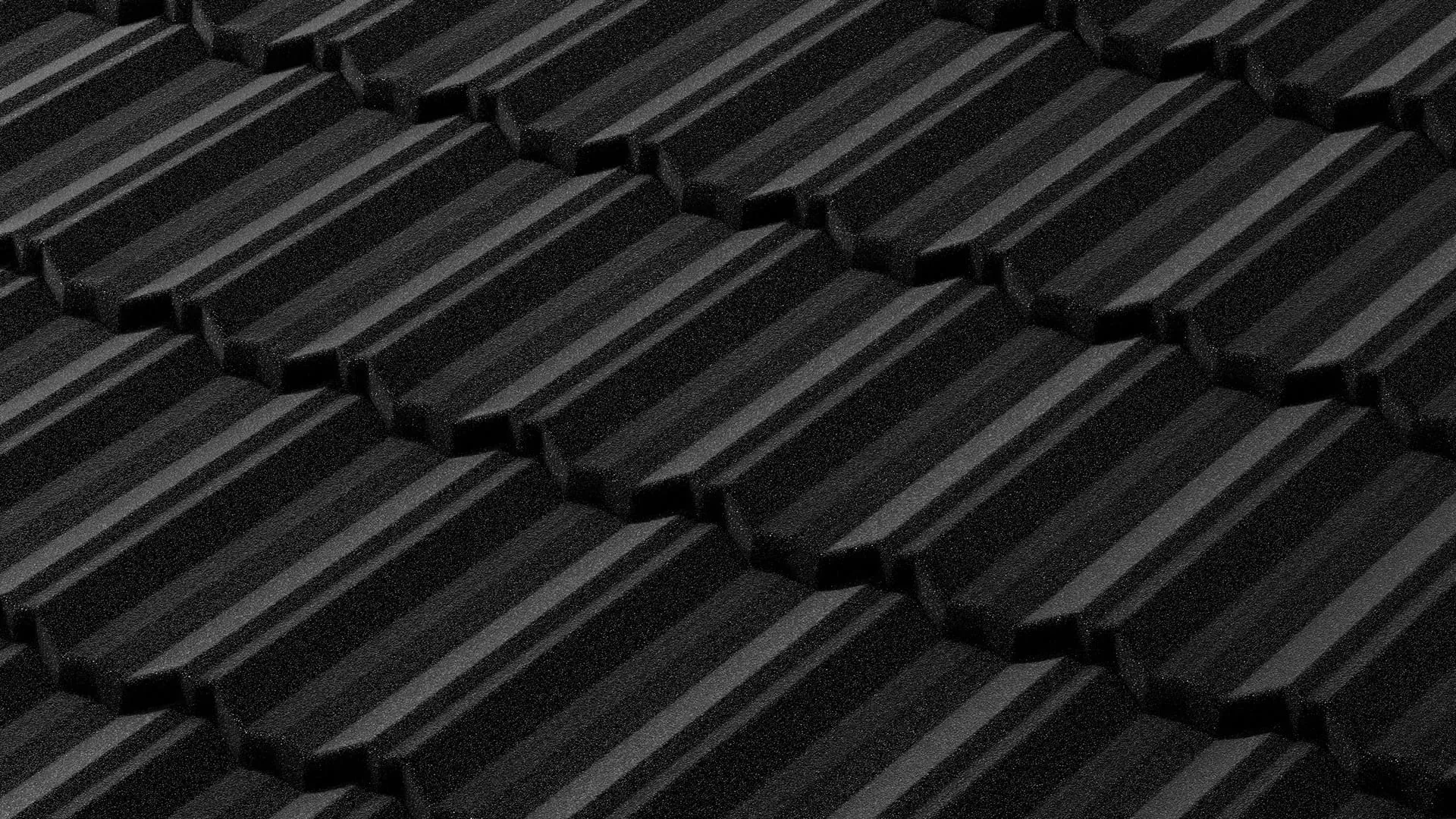

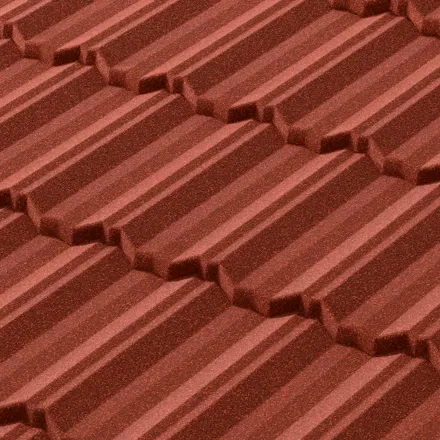

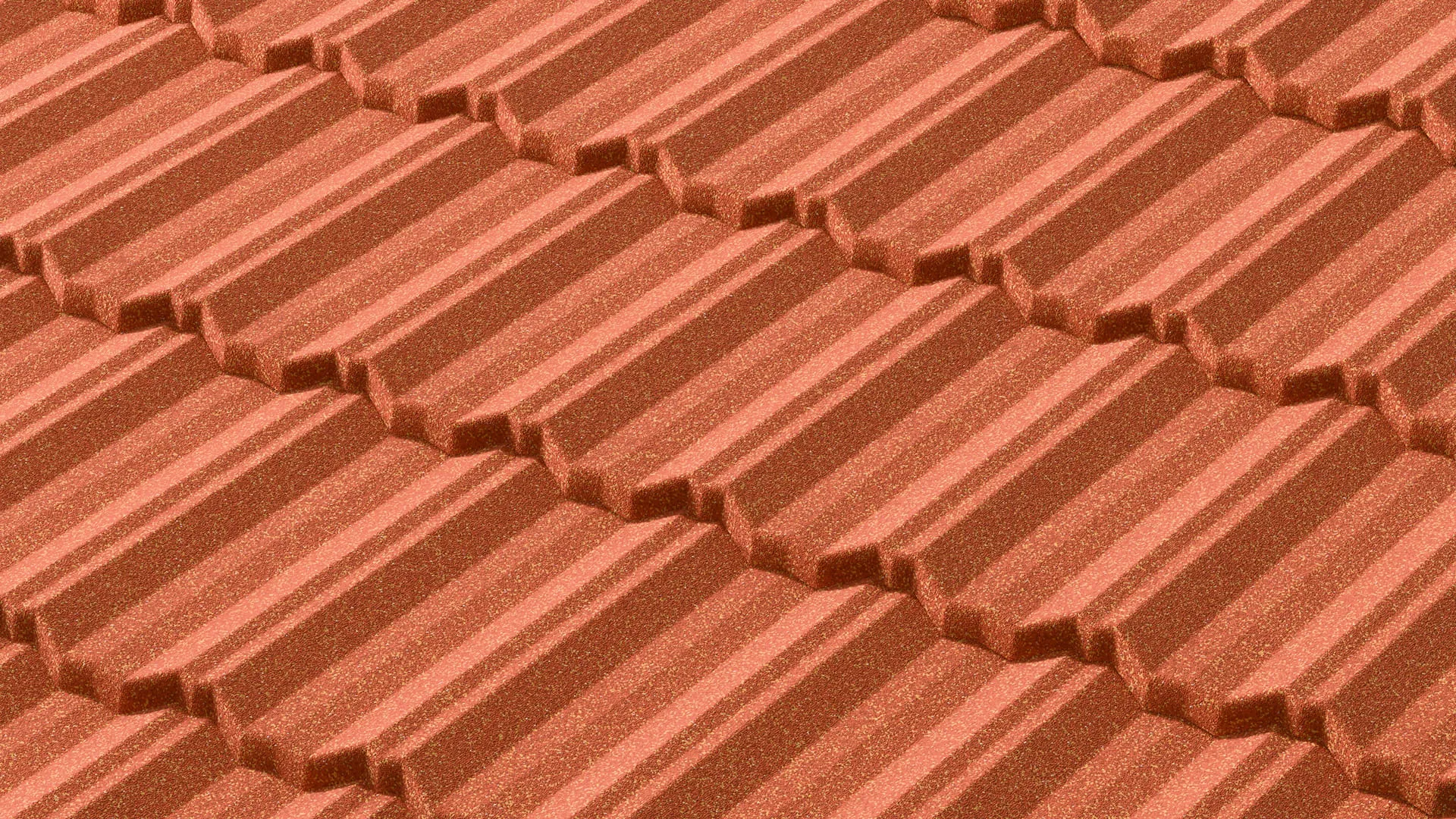

The Classic steel tiles with their well-defined angular profile are one of the most popular products in our range. Their sharp, clean lines and sloping edges bring added depth and enhance the proportions of your roofline.

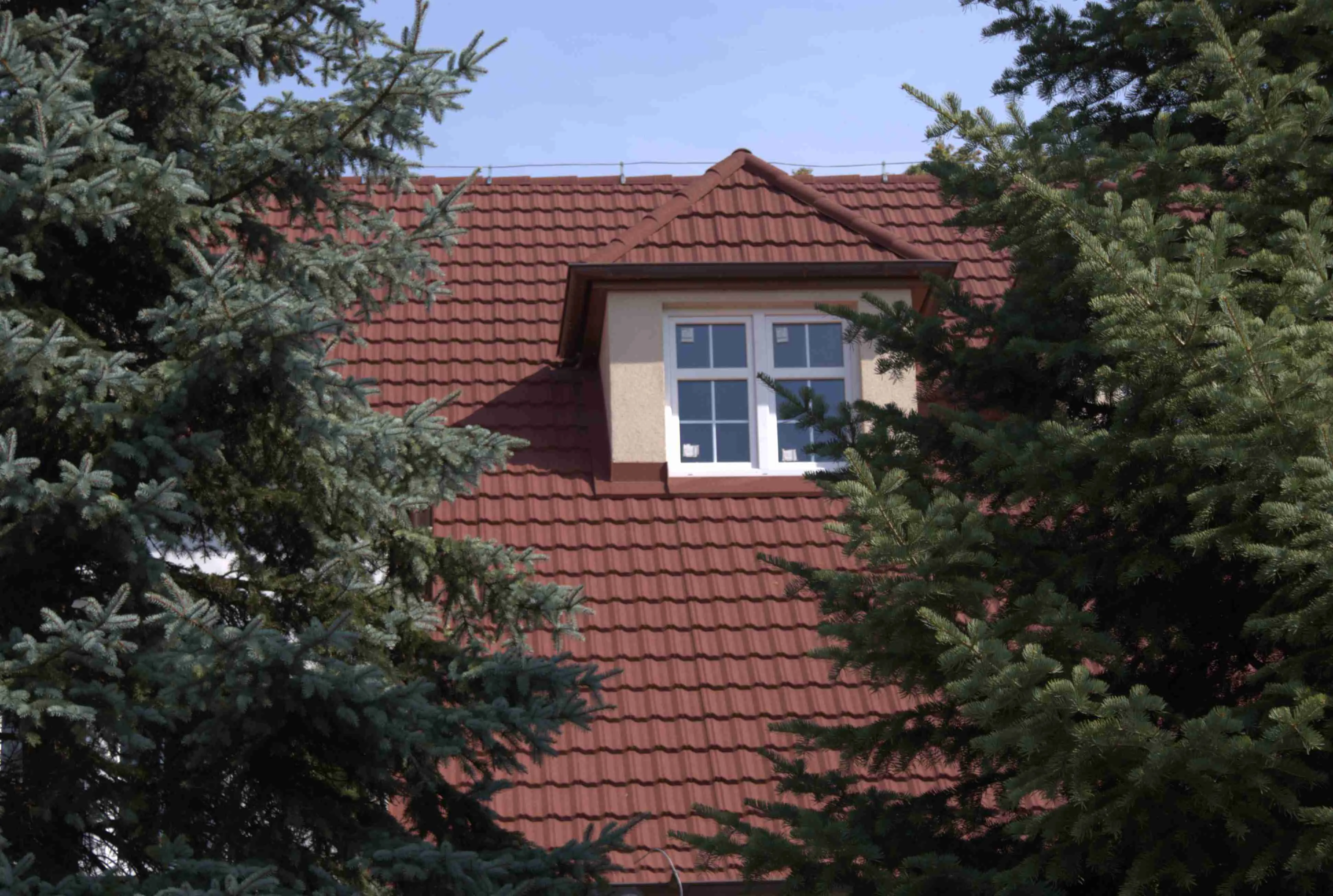

The Classic tiles are manufactured to the highest quality with exceptional durability and strength. They are available in a wide selection of colours and will enhance the appearance and value of your home in a matter of days.
INFORMATION
PRODUCT TYPE
Roof Tile
TILES PER
2.14 m²
UP STAND
25 mm
DOWN TURN
24 mm

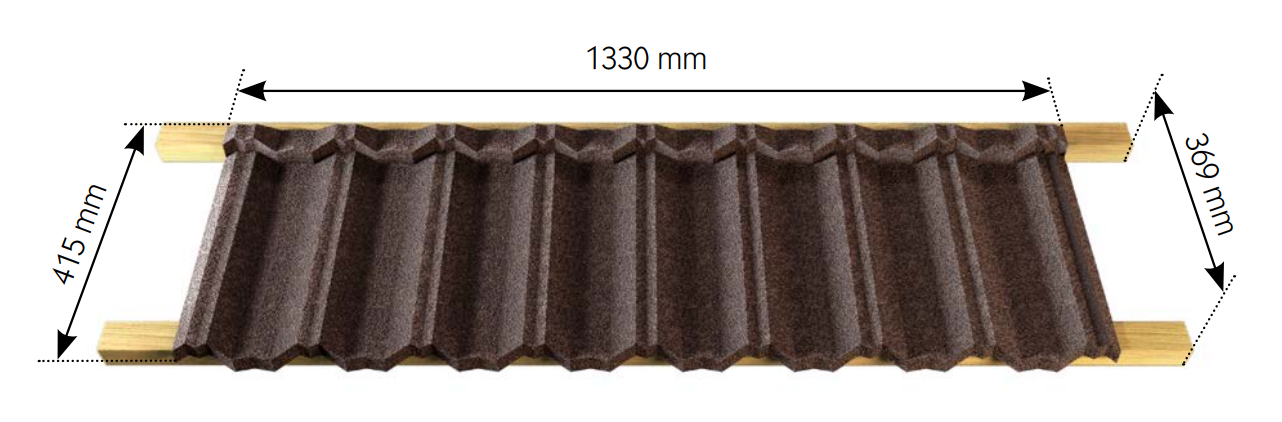

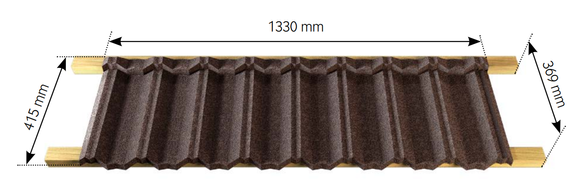

DIMENSIONS
- Width of cover : 369 mm
- Length of cover : 1265 mm
- Overall Width : 415 mm [± 3 mm]
- Overall Length : 1330 mm [± 3 mm]
WEIGHT /TILE
3.01 kg
WEIGHT/AREA
6.44 kg/m²
TEXTURED SURFACE
Stone chip granules are applied to provide an attractive textured finish which at the same time enhance resistance to UV radiation. Granules are ceramic coated with lightfast heat resistant pigments.
BATTEN SPACE
369 mm
ROOF COVER
0.467 m2

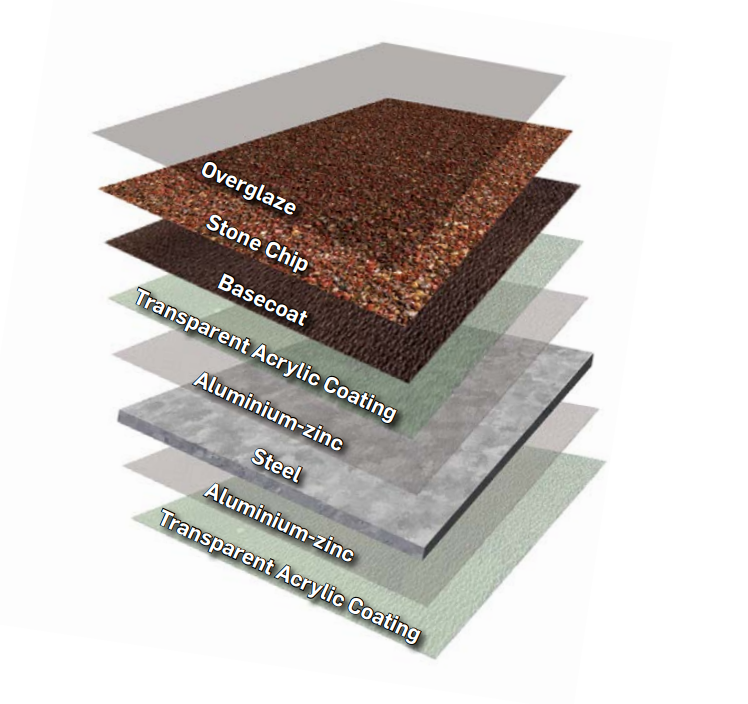

MATERIAL STRUCTURE
-Overglaze -Stone Chip -Basecoat -Transparent Acrylic Coating -Aluminium-zinc -Steel -Aluminium-zinc -Transparent Acrylic Coating
MAXIMUM ROOF PITCH
90 degrees
MINIMUM ROOF PITCH
10 degrees
DOWNLOADS
↓ Classic Brochure
↓ Classic Eave Apron
↓ Classic Basic Principle L
↓ Classic Box Barge Cover
↓ Classic Specification Sheet
STEEL SPECIFICATION
The Metrotile Classic tile is made of Aluzinc® alloy coated steel. The grade of steel used is designed to allow forming without cracking or significant elastic recovery and at the same time to be rigid enough to tolerate reasonable loads without excessive deformation.
STEEL THICKNESS
0.41 mm
STEEL GRADE
DX52D
ALUZINC® COATING MASS
150 g/m²
ALUZINC® COATING GRADE
AZ150
COATING SPECIFICATION
TRANSPARENT COATINGS
Both sides of the Aluzinc® alloy coated steel are coated with a transparent layer that provides protection and a uniform substrate for further coatings. This transparent coating allows identification of the aluminium-zinc substrate to be made by distributors and customers.
STONE CHIP
Carefully selected granules provide excellent surface coverage and attractive natural looking and lasting colours.
OVERGLAZE
Clear 100% acrylic resin coating for granule binding and a semi-gloss finish. It helps enhance the appearance as well as increase the resistance to physical damage.
BASECOAT
A tough opaque coating based on acrylic resin. It bonds the stone chips and protects the underlying layer from water and UV radiation. It has good UV resistance and retains its flexibility although it does become harder after the first few weeks.

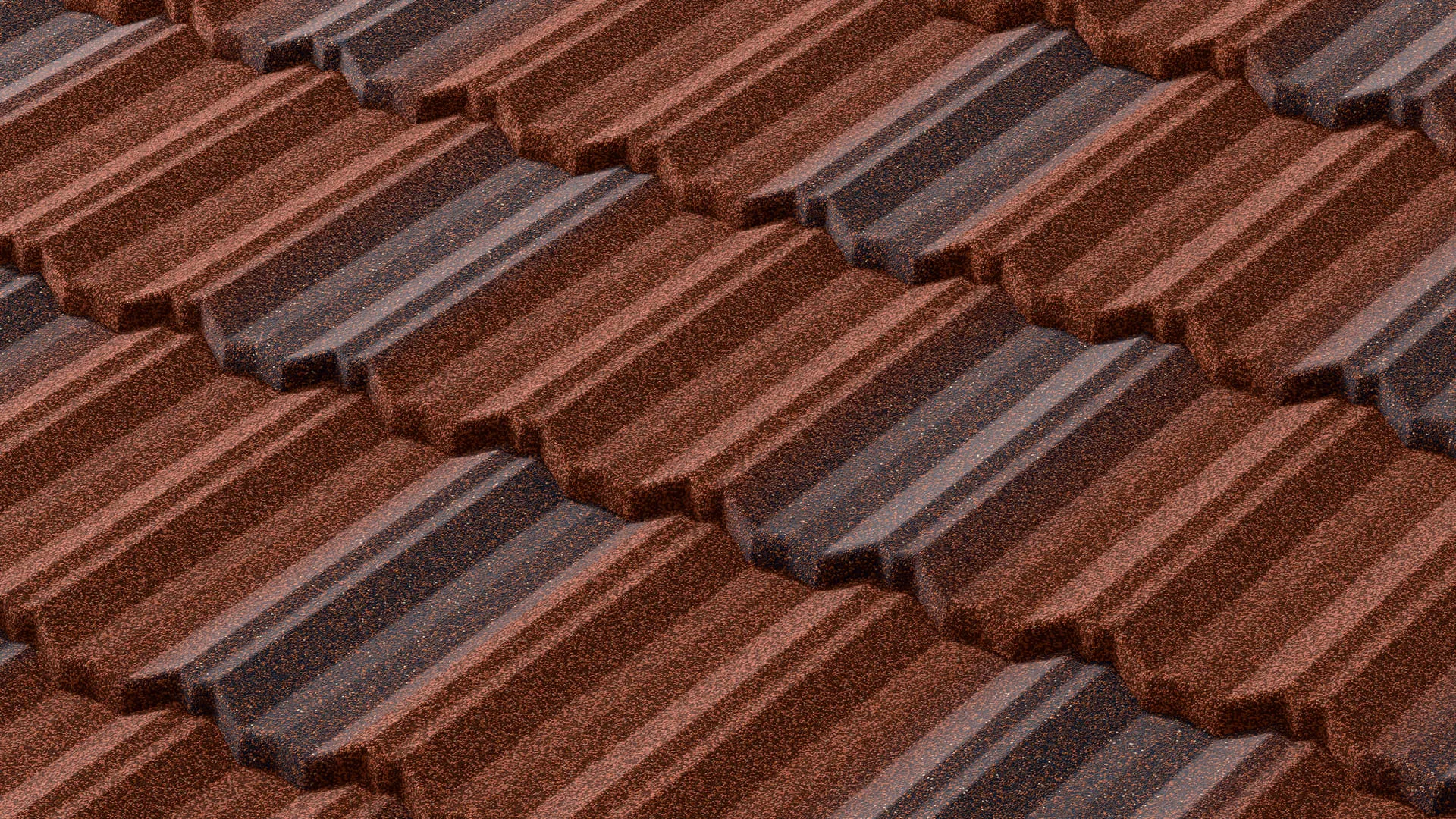

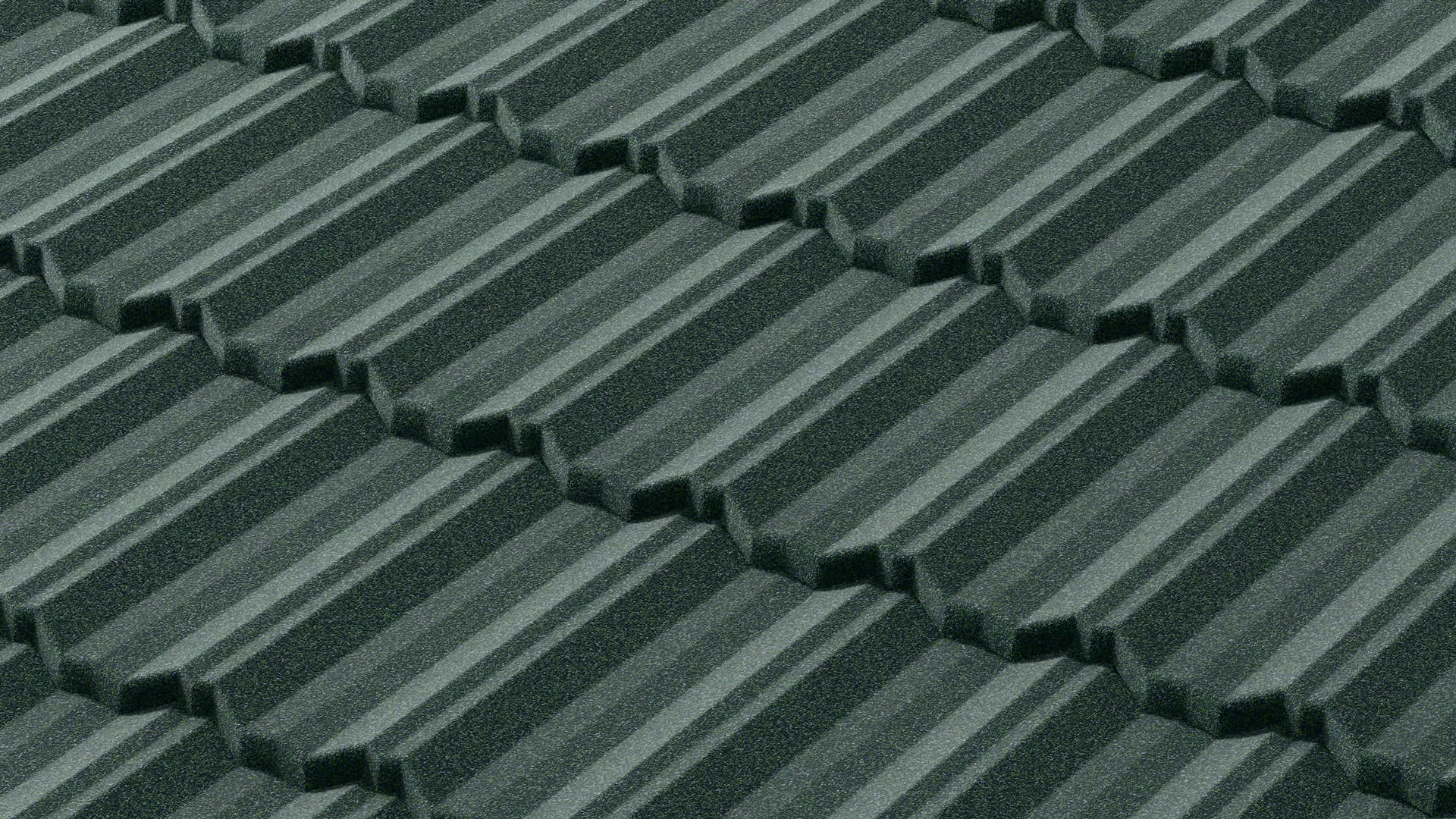

COLORS
ALL COLORS
